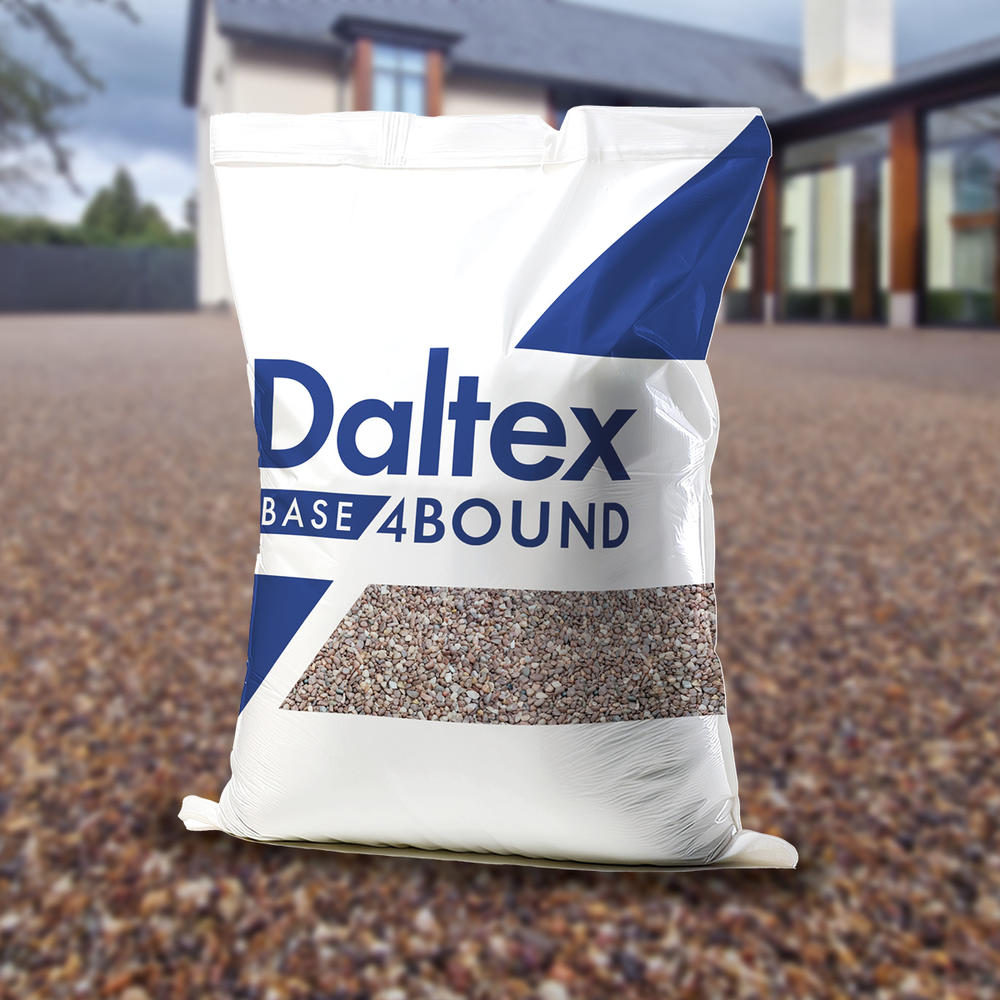

DALTEX Base4Bound Aggregate
— Or —
DALTEX Base4Bound is specially designed to create a stable base for resin bound surfaces that is both flexible and highly durable. It is a convenient alternative to tarmac, concrete and all other types of resin bound bases.
DALTEX BASE4BOUND Aggregates are specially selected and screened to be used with BBA Approved DALTEX Performance Resin to create a stable, long-lasting base - guaranteed!*
What is in a DALTEX Base4Bound kit?
- 4.5kg DALTEX Non-UV Resin for Base
- DALTEX Binding Quartz
- 4x Bags DALTEX BASE4BOUND Aggregates
- SRM Roll - The SRM is a Structural Reinforcement Mesh adds strength and support structure to the base
Where can DALTEX Base4Bound be used
Suitable for heavy vehicle, vehicle and pedestrian loads including:
- Residential driveways
- High-footfall commercial areas
- Public projects
- Pathways, ramps & access routes
- Pool surrounds & leisure facilities
- Retail forecourts & car parks
Pedestrian traffic base build up: DOWNLOAD
Vehicle traffic base build up: DOWNLOAD
Heavy vehicle traffic base build up: DOWNLOAD
Pedestrian traffic base application method: DOWNLOAD
Light vehicle traffic base application method: DOWNLOAD
Heavy vehicle traffic base application method: DOWNLOAD
KEY INFORMATION
Base4Bound Technical Data Sheet Download
Resin Type: Polyurethane Resin
Aggregate Type: xxxxxx
DALTEX Base4Bound: Overlay Time 1-2 hours
Full Cure: 7 Days
Processing temperature: 5°C - 30°С
Fire Rating: xxxxxxxx
STRENGTH
| Strength Resistance MD | EN ISO 10319 | Kn/m | >=50 | |
| Elongation At max loAd MD | EN ISO 10319 | % | 12 | +/-2.5 |
| Strength Resistance CMD | EN ISO 10319 | Kn/m | >=50 | |
| Elongation at max load CMD of elongation | EN ISO 10319 | % | 12 | +/-2.5 |
| Tensile strength MD at 2% of elongation | EN ISO 10319 | Kn/m | 12 | +/-10% |
| Tensile strength MD at 5% of clonetion | EN ISO 10319 | Kn/m | 18 | +/-10% |
