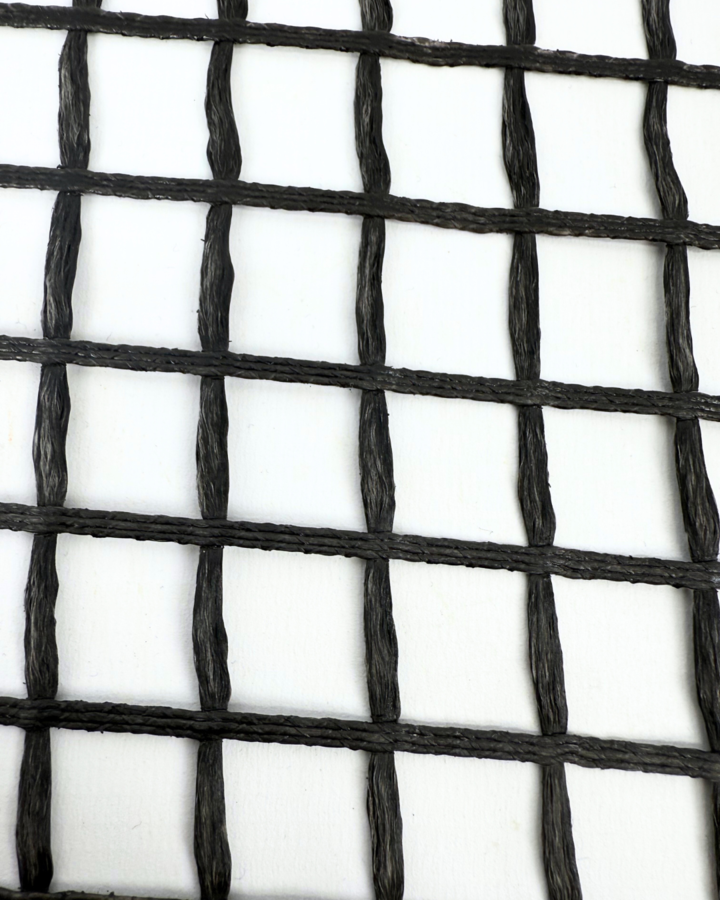

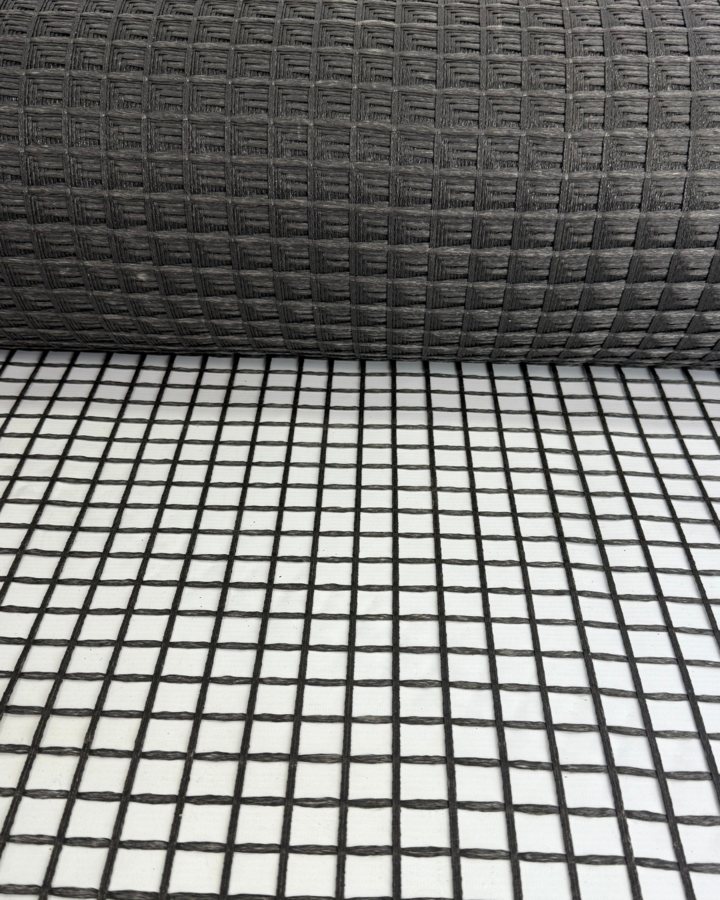

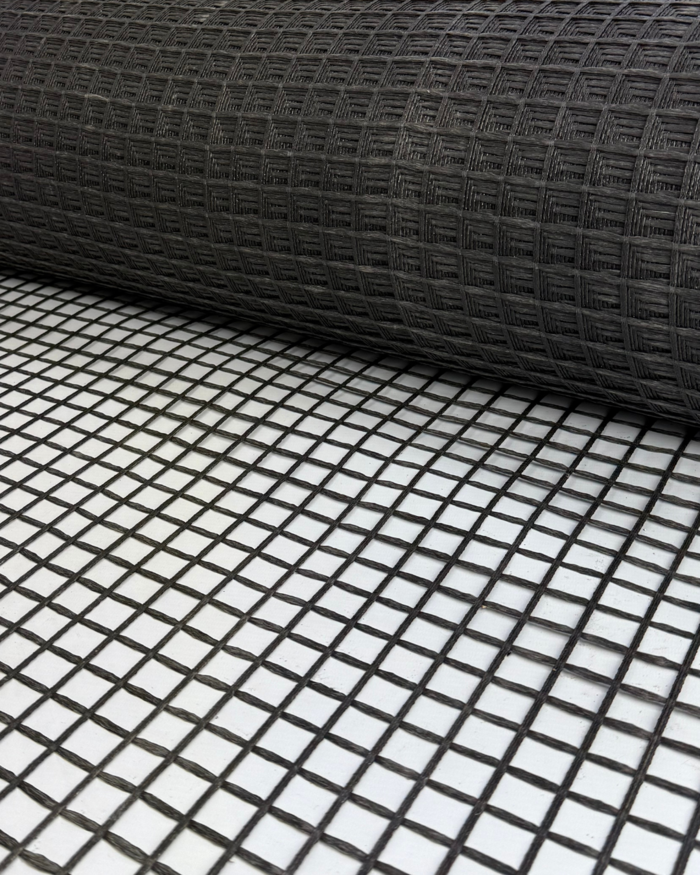

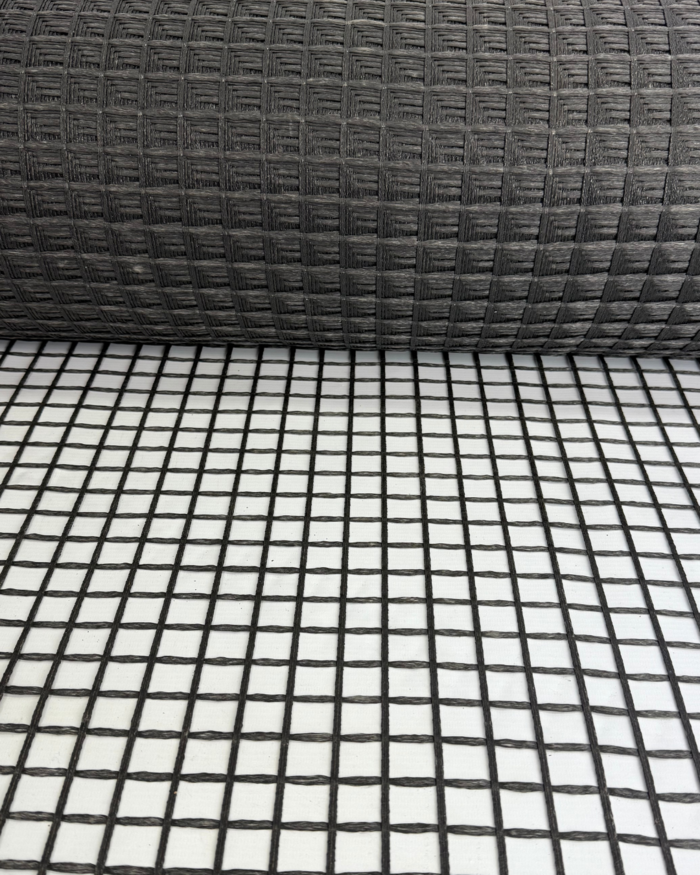

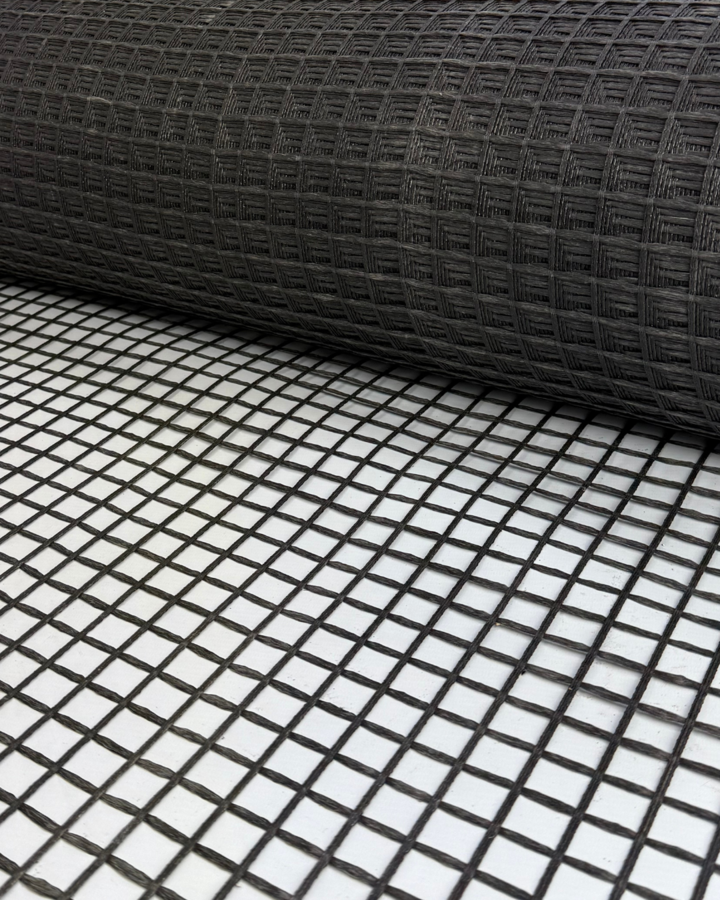

DALTEX Structural Reinforcement Mesh (SRM) 1.3 X100M
— Or —
DALTEX Structural Reinforcement Mesh (SRM) is used as part of the DALTEX Base System and is engineered for sub-grade stabilisation and base reinforcement. It helps transform weak or variable ground into a load-bearing foundation for resin bound projects.
Maximum tensile strength and load distribution: Composed of high-modulus polyester fibres which are knitted in a flat, biaxial orientation. Minimises rutting and controls cracking.
Protection Built-In: Each fiber is covered with a protective polymeric coating, enhancing durability, resistance to chemical and biological degradation and ease of handling during installation.
Optimal Performance: Ideal for driveways, roads and heavily loaded areas where maintaining structural integrity and preventing settlement is critical.
- Roll length: 100m and width is 1.3m
DALTEX SRM Technical Data Sheet Download
Daltex Base Technical Data Sheet Download
| Mechanical Properties & Dimensions | |||
| Property | Standard | Performance | Tolerance |
| Tensile strength - MD | EN ISO 10319 | ≥ 40 kN/m | |
| Tensile strength - CMD | EN ISO 10319 | ≥ 40 kN/m | |
| Elongation at nominal strength | EN ISO 10319 | ≤ 12% | |
| Tensile strength at 5% elongation - MD | EN ISO 10319 | ≥ 14.4 kN/m | |
| Aperture size | - | 25 x 25 mm | |
| Weight | EN ISO 9864 | 155 g/m² | +/- 25 g/m² |
| Roll Dimensions (L x W) | - | 100m x 1.2m | +/- 1% |
| Gross Weight | - | 20 kg/Roll | |
